POWERSYS performed for a utility located in North America a voltage transient analysis. The scope of work concerned a medium voltage substation where frequent voltage dips (10/20%) have been reported. This substation is located at the end of a radial transmission line and near two other substations equipped with capacitor banks and powering large industries.
The goals of the study included:
- To investigate the origin of the voltage dips,
- To review the capacitor bank coordination settings to validate them or suggest new operational solutions to limit the voltage dips.
The industries in the vicinity are composed of static and dynamic loads such as large induction machine.
Figure 1: Electrical substation
Figure 2: Several water pumps with large electric motors
Challenge and Methodology
The first task was to model the upstream networks and the loads to understand the origins of the voltage dips.
It was proposed to use EMTP® to model the entire system. Therefore, a dynamic model is constructed in EMTP® . The model contains all the in-scope equipment including an upstream network Thevenin equivalent, the capacitor banks, the substations and the loads. Steady-state and dynamic load data (low, medium and peek) are estimated from the data measured by the power quality and revenue meters. Characteristics of the large induction machine in the industries were provided.
Figure 3: Simplified one-line diagram

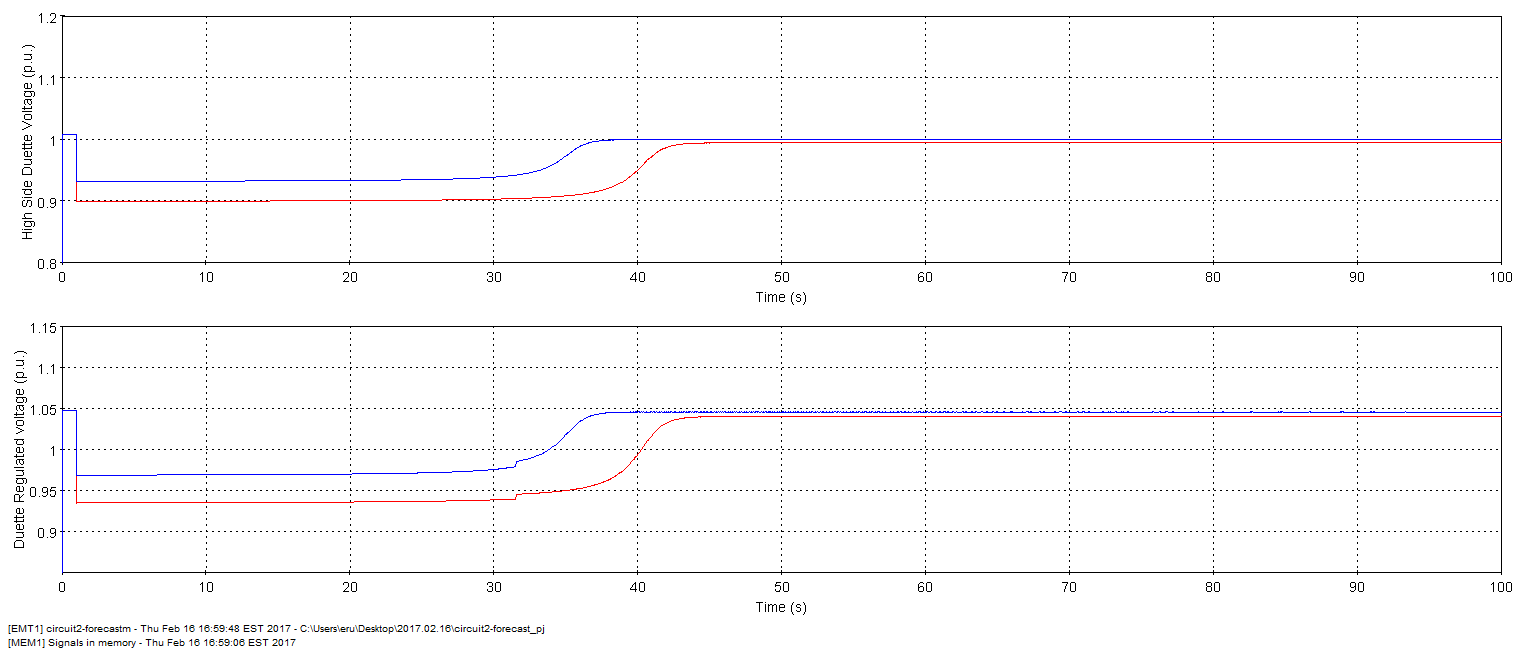

Figure 4: Example of voltage dips due to motor starting
Various mitigation techniques are investigated and proposed to limit the voltage sags:
- Adding a Static Var Compensator (SVC) is an effective technical solution to boost the voltage and reduce voltage dips.
- Another solution, more economically viable, would be to reduce the operation time of capacitor banks. A controlled-switching device can achieve a better level of performance. This technology consists in reducing inrush current when closing the circuit breakers by considering the residual voltage and by optimizing the switching times. Therefore, a capacitor bank can be operated several times per seconds. Controlled-switching can be added to existing capacitor banks or included in a new system.
Conclusion and Perspective
Thanks to EMTP® , the origin of the voltage dips is identified. Various mitigation measures are proposed and validated through simulation.
