ERRor in loading the an EMTP generated FMI model in another simulation tool

company role
manager
Submitted by amuri on Wed, 01/19/2022 - 22:00
Forums
General Discussion



Circuit

Generated FMI

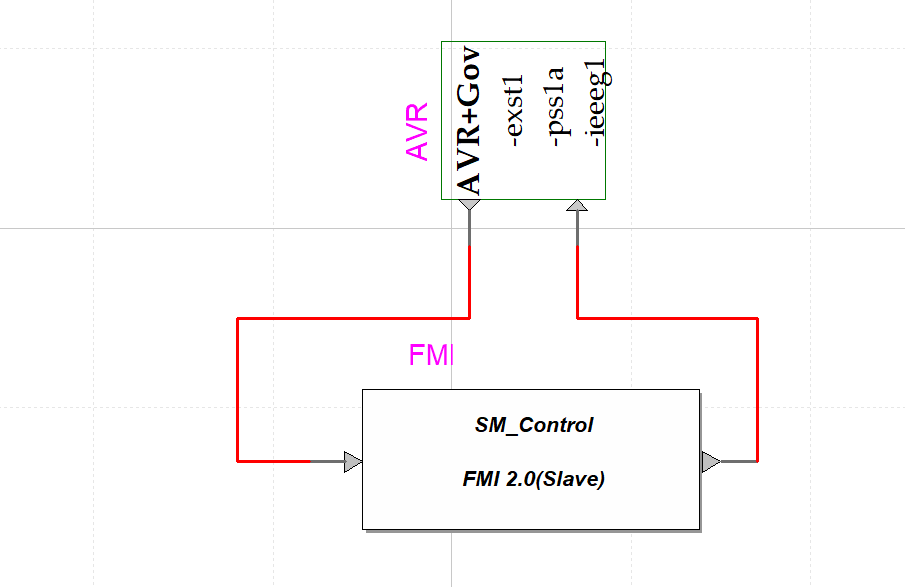

I have a circuit (fig. 1) which I have exported it as FMI (slave), in which only one file is generated with FMU extension.

I have tried to load this FMU file by a simulation tool (julia language). However, I got the below error. I am wondering if there are some other files that I need to include them in the same folder that contains the fmu file?

ERROR: LoadError: AssertionError: Target platform is Windows, but can't find valid FMU binary at `` for path `C:/Users/amroa/OneDrive - polymtl.ca/AmroAlsabbagh/Code/Julia/Tests and Notes/21- Modelica interface/simple_addition/SMControl_FMI/SM_Control`.

company role
manager
amuri

Dear Jerome C.,

Yes it accept.

I am wondering if there are some files are missing. This is because when I generate FMU model from EMTP, it gives only one file (.fmu). While for example, openModelica simulation tool gives 4 files.

Bests

Amuri

Thu, 01/27/2022 - 15:58 Permalink
